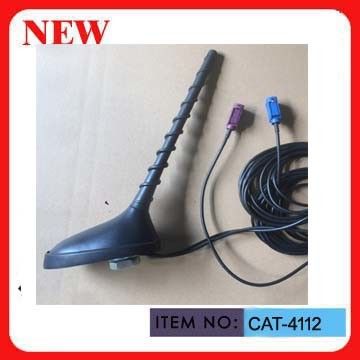

High Gain Car GPS Antenna With Fakra Male Connector Fit Citroen Peugeot
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Connector Type: | FAKRA Male Etc | Color: | Black |
|---|---|---|---|
| Cable Length: | Customize | Installation: | M14 Screw Thread |
| Function: | GSM GPS | Gain: | 25dB |
high gain low V.S.W.R. car GPS antenna with Fakra male connector fit Citroen Peugeot
Product Description:
Item no: CAT-4112
| Dielectric Antenna Specification | |
| Center Frequency | 1575.42±1MHz |
| Frequency Range | CF±5MHz |
| V.S.W.R | 1.5:1 |
| Attenuation | fo±100MHz>30dB |
| Impendence | 50 ohm |
| Peak Gain | >3dBic, Based on 7×7cm ground plane |
| Gain Coverage | >-4dBic at minus 90°<0<+90°(over 75% Volume) |
| Polarization | Right-handed Circular(RHCP) |
| LNA specifications | |
LNA Gain | |
| Noise Figure | 1.5dB |
| V.S.W.R | <1.65 |
| DC Voltage | 10-16V |
| DC current | 13mA Max(5V DC) |
| Mechanical Specifications | |
| Weight | <200 |
| Cable | 3m RG174 or others |
| Connector | SMA male straight, SMB, FAKRA, FME or others |
| Mounting | M14 screw thread |
| Housing | Black ABS |
| Environmental Specification | |
| Working Temp | -40 degree~+85 degree |
| Storage Temp | -40 degree~+85 degree |
| Vibration | Sine sweep 1g(0-p), 10~50~10Hz each axis |
| Humidity | 95%~100%RH |
| Weatherproof | 100%Waterproof |
| MTBF=1×10-6/pc.hr | 40 degree±5 degree, DC=3.0V±0.5V, 2000pcs For 480h |
Installation position as shown in the figure below:
Quality assurance:
Warranty Duration: 1 years
Warranty Type: Manufacturer Warranty
Our Company
CAZAN Electronics has over 8 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
Our manufacturing facilities can build just about many types of custom car AM/FM antenna, GPS,GSM antenna, TV antenna, DAB antenna ,CB antenna etc.
Our advantages:
1. Quality control:most of products have CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :3~20 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
We can give you a promise:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
Product details:
