Round Shape Car Gsm Gps Antenna , AM FM Car Antenna 12" Cable Length

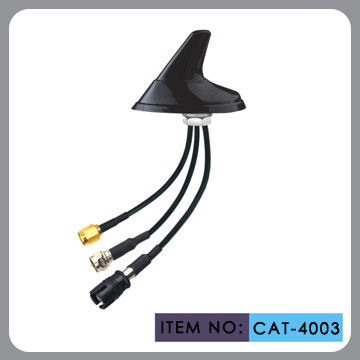

Large Image : Round Shape Car Gsm Gps Antenna , AM FM Car Antenna 12" Cable Length

Product Details:

Place of Origin:	CHINA
Brand Name:	CAZAN
Certification:	CE
Model Number:	CAT-4003

Payment & Shipping Terms:

Minimum Order Quantity:	499pcs
Price:	negotiation
Packaging Details:	polybag etc
Delivery Time:	10--15 WORK DAYS
Payment Terms:	T/T, L/C
Supply Ability:	20000pcs/ each month

Detailed Product Description

Function:	GSM GPS	Color:	Black
Cable Length:	12"	Installation:	Magnetic
Connector Type:	SMA Male Etc	Shape:	Round

1575.42mhz car GPS antenna with 0.3M sticker and SMA male connector

Item no.: CAT-4003

Product Description

(i)Dielectric Antenna

Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at -90°＜0 ＜+90°(over 75% Volume)
Polarization:RHCP

(ii)GSM Antenna
Center Frequency(MHz):850/900/1800/1900
VSWR:2.0:1
Impedance(Ω):50
Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz

(iii)LNA/Filter

LNA Gain(Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage (V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current (mA):11 Max

(iv)Mechanical

Weight(gram)＜240
Size(mm):84×53.8×62
Cable GPS(m):RG174 2,5 etc.
GSM(m):RG174 2,5 etc.
Connector GPS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Screw(Hole/Roof)
Housing:Black

(v)Environmental

Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof

FAQ:

• Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.

• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.
It usually takes about 7-15 days to produce the products.

• Q: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated.

• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .

• Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now !!! Free sample and best answers are waiting for you.
